Continuous Slot Johnson Screens Groundwater And Wells Wleded Rings End Connection

Name: Continuous Slot Johnson Screens Groundwater And Wells Wleded Rings End Connection
Brand: Heng Yuan
Price: 1 USD

Quality Continuous Slot Johnson Screens Groundwater And Wells Wleded Rings End Connection wholesale

Brand Name : Heng Yuan

Model Number : HY005

Certification : ISO9000

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Package : Woden box, Container

Slot size : 1.0 mm

Material : Stainless steel

Diameter : 10 ",273mm

Length : 5.8M

Grade : 304

End connection : Wleded rings

Contact Now

High Strength Continuous Slot Stainless Steel Water Well Drill Screen

Product Description:

High Strength Continuous Slot Stainless Steel Water Well Drill Screenis manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Specificarion:

Material	Stainless steel
Grade	304 316L
O.D	63mm 89mm 117mm 168mm 219mm 273mm 325mm 377mm 426mm
Size	2" 3" 4" 5" 6" 8" 9" 10" 12" 14" 16"
Length	5.8 m / 2.9 m
Solt size	1.0 mm
End connection	Welded rings
Wire size	63# 93 # 118#
Support rod	120# 140 # 170# 200#
Wire shape	V shape

Characteristic:

High Strength Continuous Slot Stainless Steel Water Well Drill Screen have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Regular Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Use:

High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

water well

water supply systems

Refining & petrochemical

Filter equipment

Sand control

Pictures:

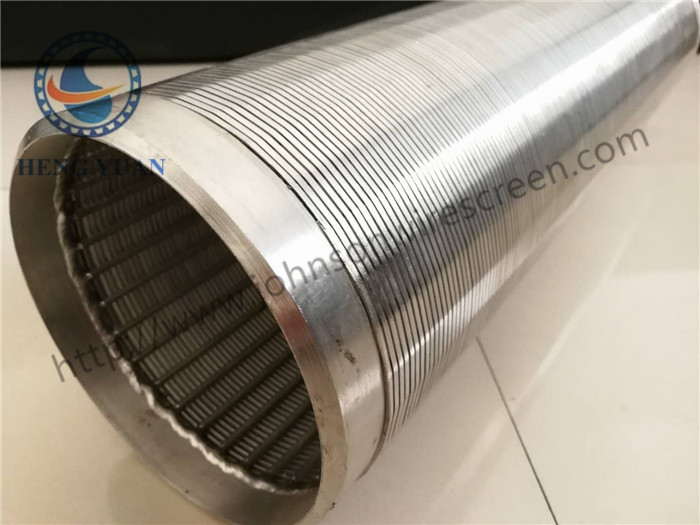

Continuous Slot Johnson Screens Groundwater And Wells Wleded Rings End Connection
