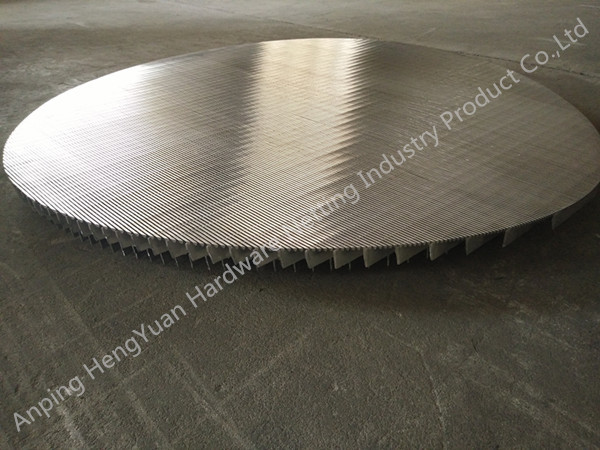

Stainless Steel Wedge Wire Screen Round Panel No Frame Strip Rod
1. Johnson screen information:

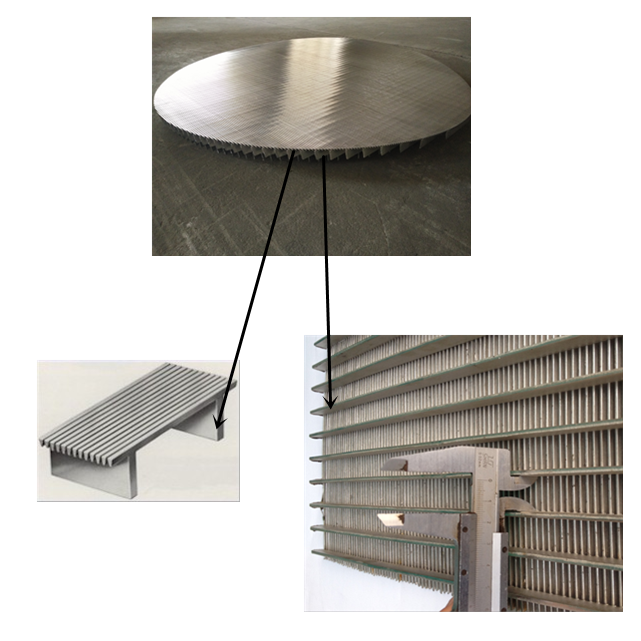

Johnson screen consist of V-shape profile wire and the longitudinal support rods
Each intersecting point of these wires is fusion welded
So Johnson screen pipe has sturdy constriction and good mechanical property
V-shape section plane can avoid blockage, and make sure of the unimpeded water
Continuous slot have a bigger open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better
Meanwhile, the slot size can be changed according to the real condition of the construction.
More details:
Materials:SS 304, 304L, 316, 316L or carbon steel
Vee-wire profile wires range in widths from 0.020-inch (0.508mm) to 0.195-inch (4.953mm) and heights ranging from 0.040-inch (1.016mm) to 0.363-inch (9.220mm), other wire shapes also available
Support rods:
Johnson screens shape support rods range in width from 0.029-inch (0.737mm) to 0.151-inch (3.835mm) and the height ranging from 0.102-inch (2.591mm) to 0.120-inch (3.048mm)
Strip rods are available in widths from 0.070-inch (1.778mm) to 0.188-inch (4.775mm) and heights ranging from 0.375-inch (9.525mm) to 2.0-inch (50.8mm)
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
| Length Range | Up to 3000mm |
| Width Range | Up to 3000mm |
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) |
| Wedge Wire(Vee- wire) | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod(Vee-wire) | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
| Strip rods :1.778-4.775mm *9.525-50.8mm Round rods 3.17-12.7mm |
| Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. |
| Note | Customized according to the requirement |
Contact me :hengyuan3@aphywire.com Skype:cherryhan09
-------------------------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
