Stainless Steel 321 Wedge wire Wound Screen Panels For Filter
Product Description:
Stainless Steel 321 Wedge wire Wound Screen Panels For Filter is welded by V wire and support rod.There is a fixed value slot between each v wire. The support rod can be round wire can also be a triangular or trapezoidal shape, wedge wire is triangular wire , the wedge shape wire make the gap opening one end small and the other end large, it is not easy to jam.This product is processed by advanced fusion welding technology, with high strength, rigidity and bearing capacity, which can be used to make rigid sieving filters of various shapes.The slot size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.
Features:
Wedge-shaped screen, wedge-shaped screen : easy to leak, wear-resistant, corrosion-resistant. The mesh section is trapezoidal. The gap is narrow at the top and wide at the bottom. It is a screen bar made of cold-rolled stainless steel wire. The support bar is welded by automatic mine screen production equipment. The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength, stiffness and Carrying capacity, it can be made into rigid screening and filtering devices of various shapes.
Advantages:
Stainless Steel 321 Wedge wire Wound Screen Panels For Filter
Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.
Industry:
Stainless Steel 321 Wedge wire Wound Screen Panels For Filter are mainly used for screening filter coal mine, coal products, such as iron ore, sandstone can also be used for food, oil, water and other solid liquid filter, mainly used in coal mine, coal washing, food, is a manufacturing and other industries, can also be used to decorate the breeding, etc.
Functions and characteristics
1. Good wear resistance and long service life, which is more than 10 times of metal screen and 3-5 times of ordinary rubber plate.
2. The cost of ore consumption per ton is lower than metal screen.
3. Good moisture resistance and abrasion resistance.
4. It can reduce vibration and noise. The noise is 10dB lower than metal screen.
5. Automatic cleaning, high screening efficiency.Gap (mm): 0.10,0.15,0.2,0.25,0.30-3, which can be made according to requirements of customer.
| 304 filter johnson wedge wire screen Stainless Steel sieve Bend Screen |
| Profile wire | Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00. |
| Diameter(mm) | 25.40mm ( Less than 220mm) | Length(mm) | 1000mm, (Less than 1500mm long) |
| Open area | Large open area | Efficiency | High |
| Material | Stainless steel 304 316 monel, hastelloy inconel nickel etc.. | Function | liquid filtering / liquid solid separation |
| Quality control system | Factory own control | Cleaning way | Back flush, easy to clean |
| Support rods | Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00 | End connection | Commen fittings, NPT ,BSP end fittings, calculate price separately |
| Min slot size | 25 micron | Thickness | 0.8-2.5mm |
| Length | 1000mm | Filter Rating | up to 90% |
| Color | Silver(metal original color) | Technique | Belgium welding |
Application:
Wedge screen, wedge screen, stainless steel welded mine screen Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. Sieve liquids, powders and other materials. Petroleum, chemical, metallurgy, mining, pharmaceutical purification, drilling fluid purification, etc.
The material of wedge screen, wedge screen, stainless steel welded mine screen: low carbon steel wire, iron wire, stainless steel wire.

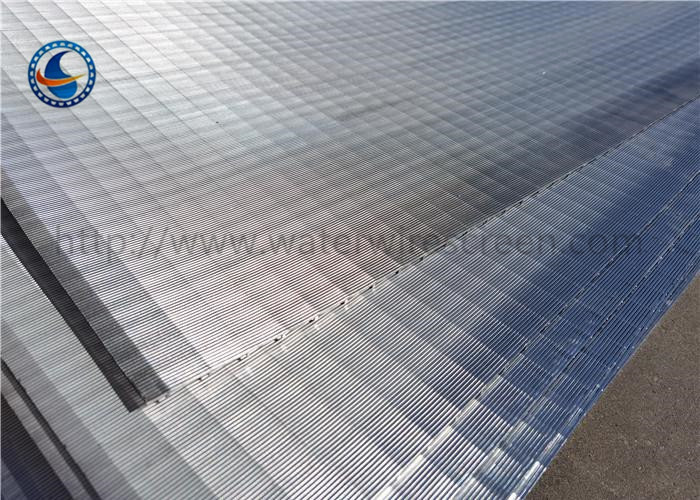

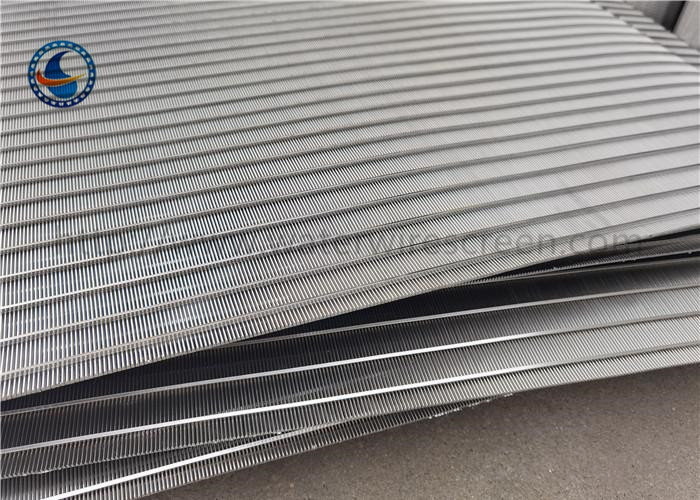

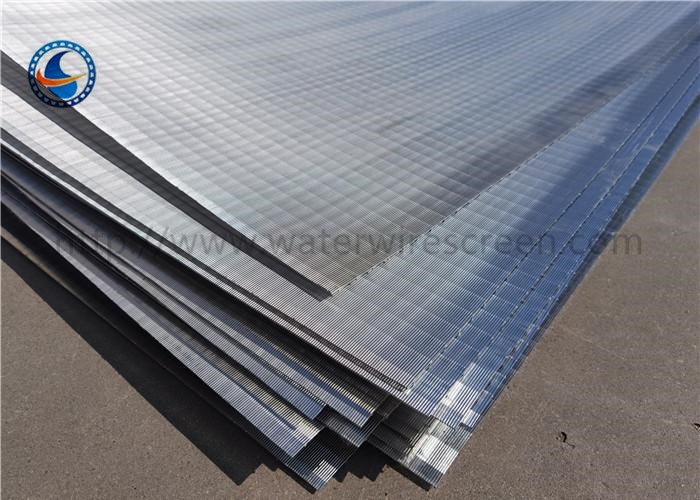

Pictures:
