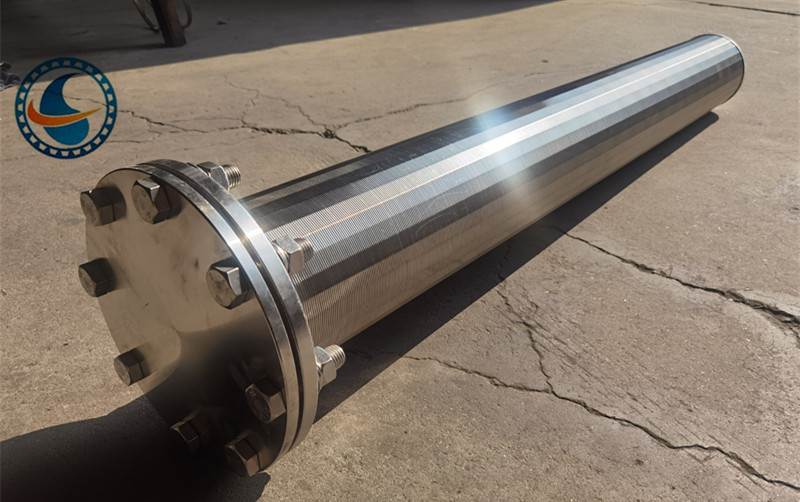

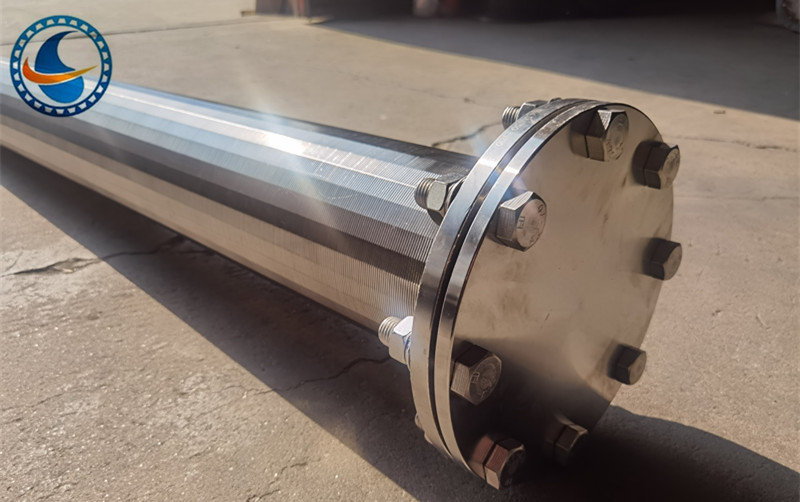

DN100 Stainless Steel 304 Wedge Wire Screen Pipe
Wedge wire screen pipe, also be named Vee shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe.
Wedge Wire Screen Pipe Sizes:
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507
Diameter : 26-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm
End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
|
Material
|
Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc.
|
|
Diameter
|
25mm-1300mm
|
|
Shape
|
Cylindrical
|
|
Slot
|
0.02mm-10mm
|
|
Thickness
|
4mm-12mm
|
|
Feature
|
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large-and small-diameter deep wells
|
|
Application
|
--Architecture & Construction
--Food & Beverage Screens
--OEM Screen Components
--Refining & Petrochemical
--Waste Water Treatment
--Water Well & Oil well
--Coal & Mine
--Chemical industry
--Pharmacy
--Food and beverage
--Metallurgy
--Coal mining
--Environmental protectio
|
Wedge Wire Screen Pipe Characteristic:
Wedge Wire Screen Pipe have superior open area due to their continuous slot openings.
The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
