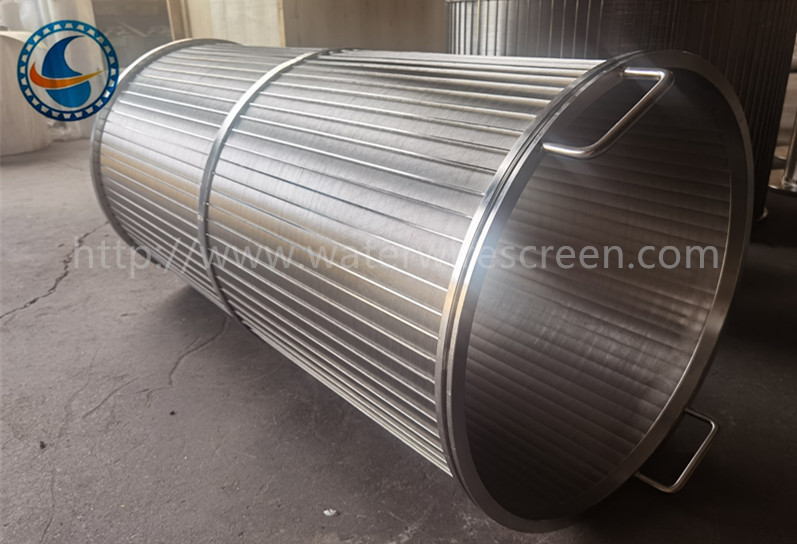

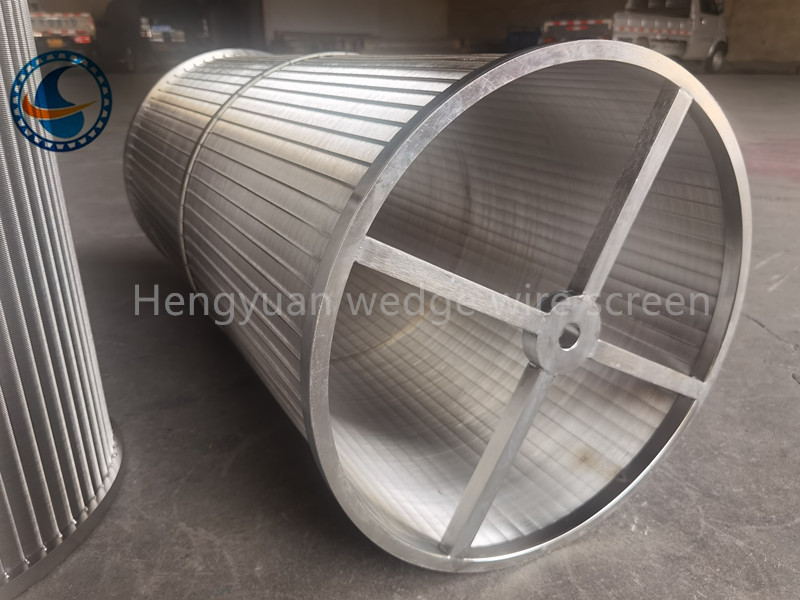

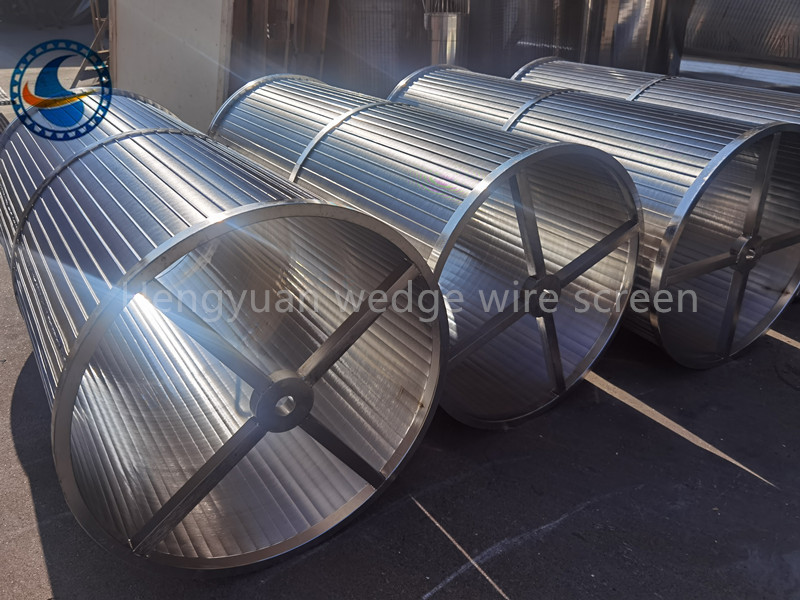

490mm Stainless Steel 316l Wedge Wire Filter Screen Basket For Scraper Filters

Name: 490mm Stainless Steel 316l Wedge Wire Filter Screen Basket For Scraper Filters
Brand: HengYuan
Price: 1 USD

Quality 490mm Stainless Steel 316l Wedge Wire Filter Screen Basket For Scraper Filters wholesale

Brand Name : HengYuan

Model Number : HY072605

Certification : ISO,CO,FORM E,CIQ, etc

Place of Origin : Hengshui City,Hebei Provincei,China

MOQ : 1 piece

Price : Negotiated price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs /month

Delivery Time : 7 days

Packaging Details : wooden box

Name : Wedge Wire Screen Basket

Material : Stainless steel 304

Diameter : 490mm

Length : 1100mm

Slot : 1.0mm

Wire : 1.5*2mm Vee wire

Support rod : 2*3mm Vee wire

Ends : Flanges

Technique : Point welding

Features : Non-clogging

Application : Filteration

Package : Wooden box

Business type : Manufacturer

Filter type : From inside to outside

Contact Now

Wedge Wire Screen Basket For Scraper Filters

Wedge Wire Screen Basket are initially manufactured as cylinders with the slots and wires running radial around the outside and support rods internal and axial. In each application every intersection of wedge wire and support rod is welded for strength. Various wire and support rod sizes can be used to produce screen designs for your particular application.

Wedge Wire Screen Basket can be manufactured in various standard diameters ranging from 17mm I.D. to 1270mm I.D. Cylinders with a required I.D. larger than 1270mm can be fabricated in segments.

Our standard size toolings are designed to match up with standard pipe sizes to service the water bore industry.

Wedge wire screen basket, once manufactured, can be reverse rolled to any desired sieve radius, or flat rolled, to suit many different applications. Surround frames, or stiffener bars, can be added to suit your needs.

Wedge Wire Screen Basket Normal Size:

Name: Wedge Wire Screen Basket,Johnson Wedge Wire Screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Rotary filter drum.

Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.

Diameter: From OD 25-1300mm

Slot: From 0.025-100mm

Length: From 100-6000mm

Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.

Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,

Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Wedge Wire Screen Basket Type:

1. Triangle wedge wire smooth surface inside, filtering from inside to outside

2. Triangle wedge wire smooth surface outside,support rod inside, filtering from outside to inside.

3. Flange or stainless steel plate at both ends.

4. Cylinder body plus flat steel, square steel, spiral and so on,it can be customized

5. Notched sieve tube, convenient for material in and out.
