Customized stainless steel wedge wire sieve bend screen & DSM screen
Product Description:
Customized stainless steel wedge wire sieve bend screen & DSM screen is a screen formed by welding a wire and a support rod, and the shape of the wire is a V-shaped wire, and the shape of the support rod may be V Wire or square wire or round wire. There is a certain gap between the screen line and the screen line. The value of the gap is provided by the customer or the manufacturer can recommend it based on the size and viscosity of the particular filter object. The gap of the screen is V-shaped, the welding point is firm, it is not easy to block, the flowability is good, the permeability is good, and it is widely used in the fields of coal washing, screening, filtration and the like.
The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction
filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements.
| Stainless steel Wedge Wire Screen Panels for Filtering and Grain Drying |
| Profile wire | Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00. |
| Diameter(mm) | 25.40mm ( Less than 220mm) | Length(mm) | 1000mm, (Less than 1500mm long) |
| Open area | Large open area | Efficiency | High |
| Material | Stainless steel 304 316 monel, hastelloy inconel nickel etc.. | Function | liquid filtering / liquid solid separation |
| Quality control system | Factory own control | Cleaning way | Back flush, easy to clean |
| Support rods | Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00 | End connection | Commen fittings, NPT ,BSP end fittings, calculate price separately |
| Min slot size | 25 micron | Thickness | 0.8-2.5mm |
| Length | 1000mm | Filter Rating | up to 90% |
| Color | Silver(metal original color) | Technique | Belgium welding |
Application:
Wedge screen, wedge screen, stainless steel welded mine screen Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. Sieve liquids, powders and other materials. Petroleum, chemical, metallurgy, mining, pharmaceutical purification, drilling fluid purification, etc.
The material of wedge screen, wedge screen, stainless steel welded mine screen: low carbon steel wire, iron wire, stainless steel wire.
Features:
Wedge-shaped screen, wedge-shaped screen : easy to leak, wear-resistant, corrosion-resistant. The mesh section is trapezoidal. The gap is narrow at the top and wide at the bottom. It is a screen bar made of cold-rolled stainless steel wire. The support bar is welded by automatic mine screen production equipment. The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength, stiffness and Carrying capacity, it can be made into rigid screening and filtering devices of various shapes.

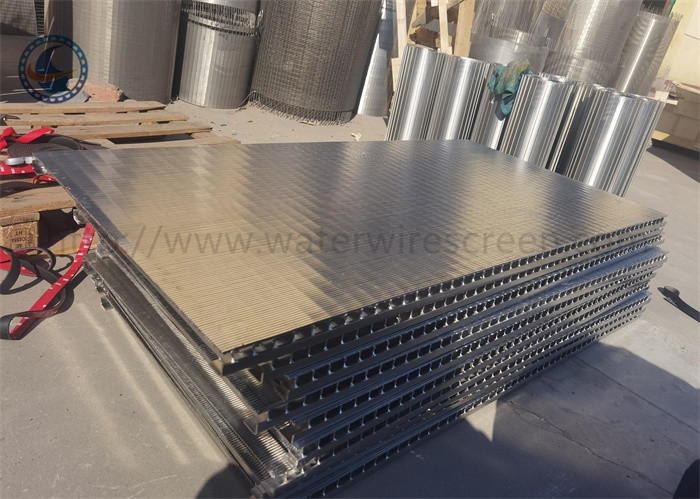

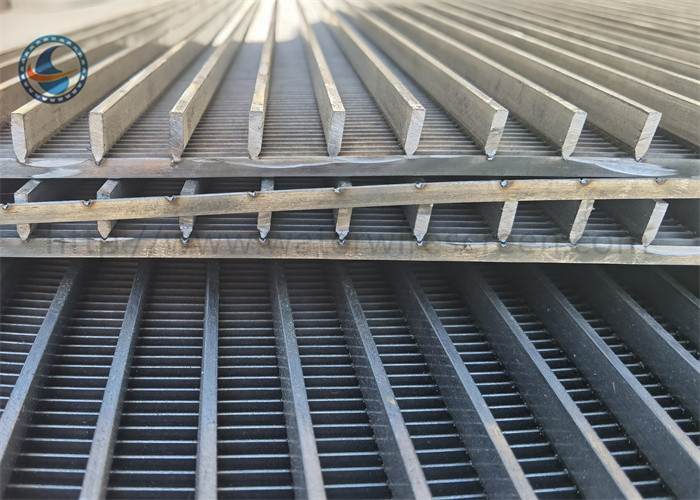

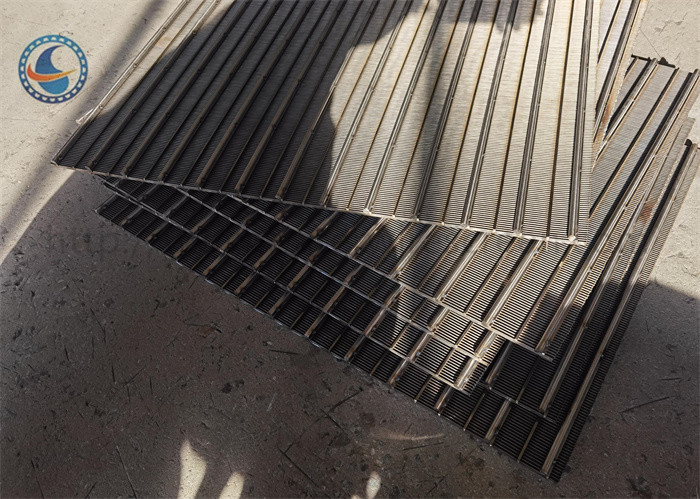

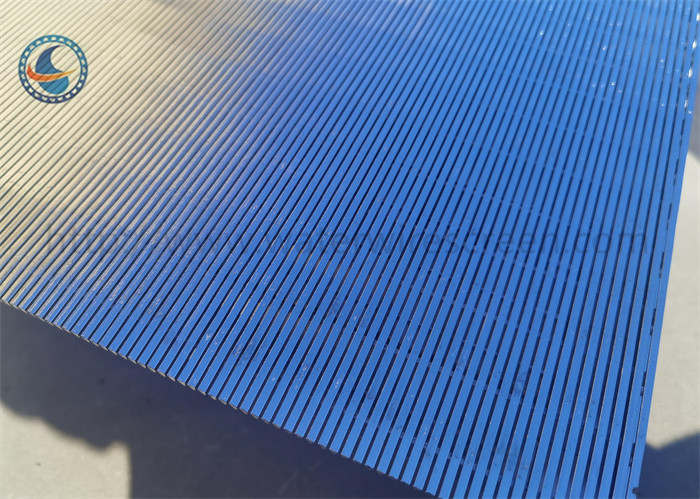

Pictures:
Product Tags:
|
|

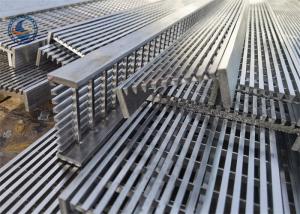

Customized 2507 Welded Wedge Wire Screen Stainless Steel Sieve Bend Dsm Screen Images
|
