Stainless Steel 304 316L Customized Wedge vee wire arc sieve bend screen plate
Product Description:
Stainless Steel Flat Weld Wedge Wire Screen Johnson Screen Panel is made of V-shape profile wire and longitudinal support rods,make the adjacent wire forming has a fixed value slot tubular body. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property.
The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction
filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements.
Advantages:
Uniform gap: The gap between each screen is fixed. The CNC machine can make the gap accurately.
The solder joint is firm: the V-shaped wire tip is welded to the tip, which makes the solder joint more firm and difficult to remove.
Not easy to block: V-shaped wire has a unique shape, so that each slit is small on one side and small on the side of the small gap. It is not easy to block and can be backwashed.
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 50mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
| SIZES OF THE WIRE AND ROD |
| WIRE SHAPE |
V |
V |
V |
V |
V |
V |
| Width(mm) |
1.0 |
1.2 |
1.5 |
2.0 |
2.2 |
3.0 |
| Height(mm) |
2.0 |
2.0 |
2.0 |
3.5 |
4.5 |
4.6 |
| ROD SHAPE |
V |
V |
V |
V |
V |
O |
| Width(mm) |
2.0 |
2.2 |
3.0 |
3.0 |
3.2 |
Diameter |
| Height(mm) |
3.0 |
4.5 |
4.6 |
5.0 |
6.0 |
3.0~3.8
|
Application:
Wedge screen, wedge screen, stainless steel welded mine screen Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. Sieve liquids, powders and other materials. Petroleum, chemical, metallurgy, mining, pharmaceutical purification, drilling fluid purification, etc.
The material of wedge screen, wedge screen, stainless steel welded mine screen: low carbon steel wire, iron wire, stainless steel wire.
Features:
Wedge-shaped screen, wedge-shaped screen : easy to leak, wear-resistant, corrosion-resistant. The mesh section is trapezoidal. The gap is narrow at the top and wide at the bottom. It is a screen bar made of cold-rolled stainless steel wire. The support bar is welded by automatic mine screen production equipment. The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength, stiffness and Carrying capacity, it can be made into rigid screening and filtering devices of various shapes.

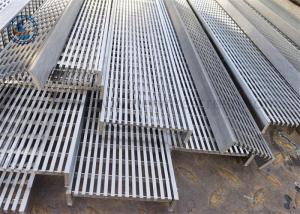

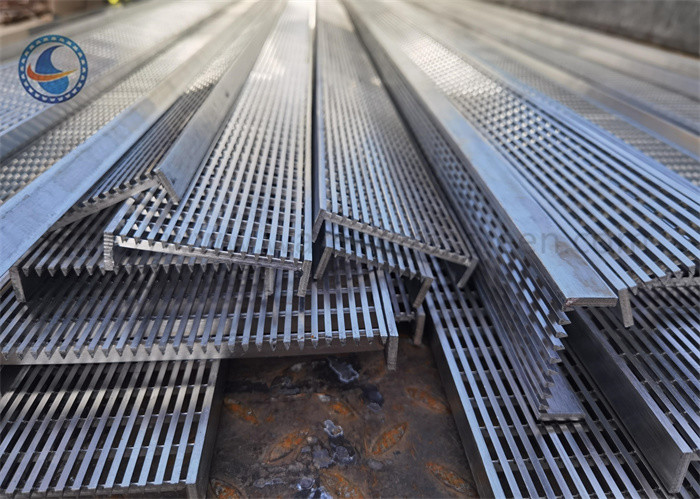

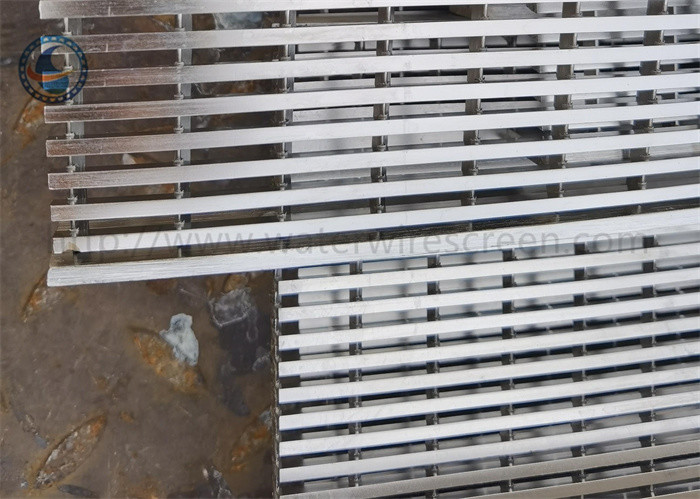

Pictures:
