Johnson Stainless 20 Micron Sieve Bend Screen Welded Wedge Wire Dsm For Static Sieve

Name: Johnson Stainless 20 Micron Sieve Bend Screen Welded Wedge Wire Dsm For Static Sieve
Brand: Heng Yuan
Price: 1 USD

Quality Johnson Stainless 20 Micron Sieve Bend Screen Welded Wedge Wire Dsm For Static Sieve wholesale

Brand Name : Heng Yuan

Model Number : HY004

Certification : ISO9000

Place of Origin : Hebei,China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64pcs per 20 ft container

Material : Stainless steel 316L 304 321 2205 2507

Key word : Stainless Johnson welded wedge wire DSM sieve bend screen for static sieve

Slot size : 0.5mm

Length : up to 4.5 meters

Width : up to 4.5 meters

Video outgoing-inspection : Provide

Type : Filter Elements

Thickness : 4-12mm

Surface treatment : Polished

Mesh size : 4-400 mesh

Contact Now

Stainless Johnson welded wedge wire DSM sieve bend screen for static sieve

Product Description:

SS Flat Weld Wedge Wire Screen Johnson Screen Panel consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property.

Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSC Screen can be custom designed to separate solids from liquids in various appli-cations including food processing, pulp and paper, waste water clean up, surface water intakes, corn wet milling, coal preparation, and gold recovery.
Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which
greatly increases the dewatering capacity.

Specification:

Material	Stainless steel
Key word	Stainless Johnson welded wedge wire DSM sieve bend screen for static sieve
Dimension	Up to 6000*6000mm
Slot Range	20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes	Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
End Finishing	With the frame, without any frame, according to request.
Note	Customized According To Requirement

Regular Specifications:

SIZES OF THE WIRE AND ROD
WIRE SHAPE	V	V	V	V	V	V
Width(mm)	1.0	1.2	1.5	2.0	2.2	3.0
Height(mm)	2.0	2.0	2.0	3.5	4.5	4.6
ROD SHAPE	V	V	V	V	V	O
Width(mm)	2.0	2.2	3.0	3.0	3.2	Diameter
Height(mm)	3.0	4.5	4.6	5.0	6.0	3.0~3.8

Advantages:

Uniform gap: The gap between each screen is fixed. The CNC machine can make the gap accurately.
The solder joint is firm: the V-shaped wire tip is welded to the tip, which makes the solder joint more firm and difficult to remove.
Not easy to block: V-shaped wire has a unique shape, so that each slit is small on one side and small on the side of the small gap. It is not easy to block and can be backwashed.

Industry:

High Precision Wedge Wire Screen Panels Johnson Wound Screen Plate Use For Coal Washer can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

mining machinery: used for desilting and dewatering of coal preparation plants, coal whasher.
wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
food industry: the filtration process can be used for food and beverage.
aquaculture: used for farming, cleaning up waste residues from animals.
chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.

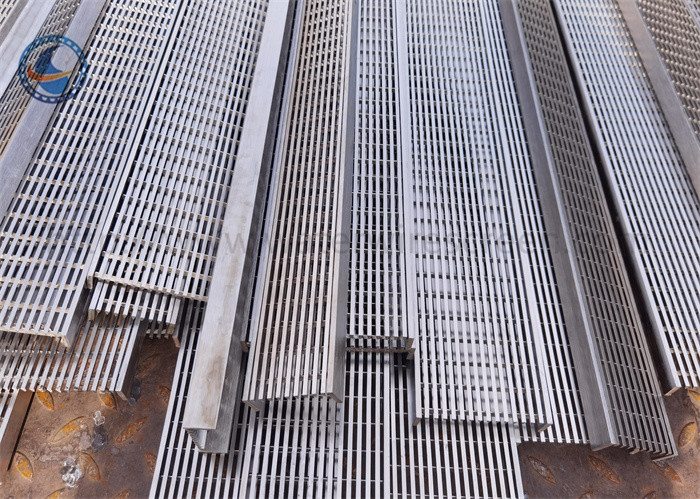

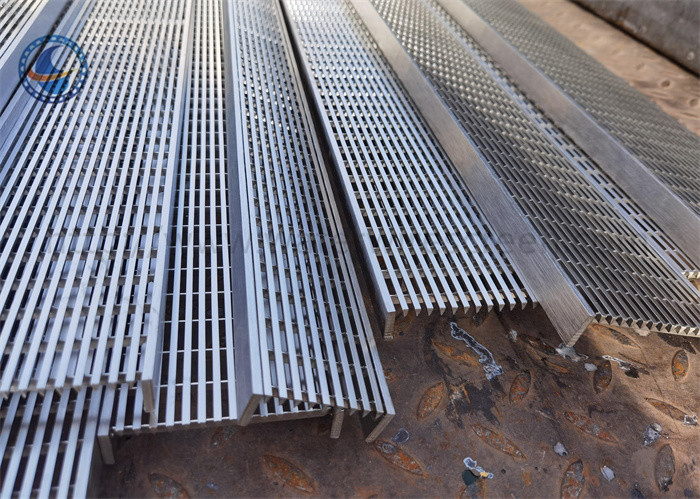

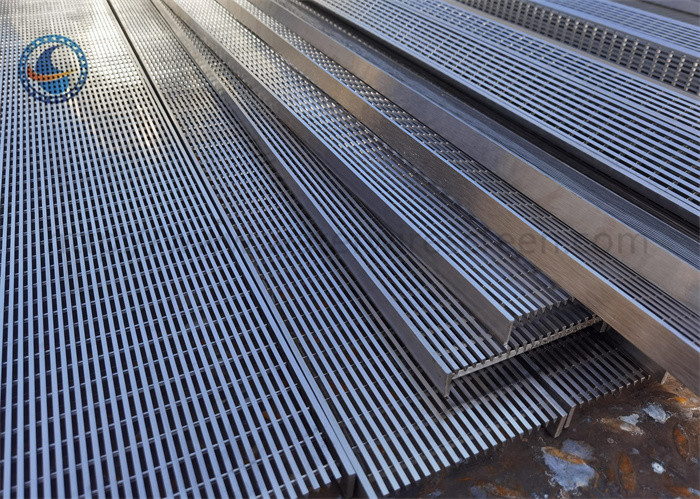

Pictures:

Johnson Stainless 20 Micron Sieve Bend Screen Welded Wedge Wire Dsm For Static Sieve
